48V 210Ah Lithium Forklift Battery

F48210

Technical Specifications

Nominal Voltage: 48V (51.2V)
Nominal Capacity: 210 Ah
Stored Energy: 10.75 kWh
Dimension (L×W×H) In Inch: 37.4×14.8×21.7 inch
Dimension (L×W×H) In Millimeter: 950×375×550 mm
Weight lbs. (kg) No Counterweight: 440 lbs. (200 kg)
Life Cycle: >3,500 times
IP Rating: IP65

The strong power from ROYPOW automotive grade batteries will bring you unexpected experience. It was supposed as the most stable and reliable lithium-ion battery for cycling equipment. 10 years battery life and 5 years warranty make you worry-free.

Our smart BMS can deliver you real-time monitoring and communication through CAN. Remote diagnosing and upgrading software, enables you a quick recover from fault operation. And the smart display shows you all critical battery functions in real-time, like voltage, current, and remaining charging time and fault alarm.

For 48V/210A batteries, we have made F48210A and F48210B to suit various machines, they could be slightly differed in weight and dimensions. We offer custom-tailored batteries if there are no types suiting you.

Enquiry Now Data Sheet

Benefits

Higher sustained power, with no voltage drop-off
Safe – No acid spills or combustible gas emission
Over 3500 cycles at 80% depth of discharge
5 years warranty bring you peace of mind
Save bills since rechargeable charging improves efficiency and reduce the heating damage costs
No battery swapping required for multi-shift applications
No maintenance to do
Remote diagnose and upgrade software

Benefits

Higher sustained power, with no voltage drop-off
Safe – No acid spills or combustible gas emission
Over 3500 cycles at 80% depth of discharge
5 years warranty bring you peace of mind
Save bills since rechargeable charging improves efficiency and reduce the heating damage costs
No battery swapping required for multi-shift applications
No maintenance to do
Remote diagnose and upgrade software

Green and endure energy supply:

You won’t run up your battery even in the end of one shift, because the lithium-ion battery can be quickly recharged and stores about three times energy than a conventional battery.
Our batteries can work down to -4°F ( -20°C). With their self-heating function (optional), they can heat from -4°F to 41°F in an hour.
Support multi-shift operation and provides peak performance with the advantage of opportunity charge.
Remote monitoring, communicating and controlling ROYPOW batteries through CAN.

Green and endure energy supply:

You won’t run up your battery even in the end of one shift, because the lithium-ion battery can be quickly recharged and stores about three times energy than a conventional battery.
Our batteries can work down to -4°F ( -20°C). With their self-heating function (optional), they can heat from -4°F to 41°F in an hour.
Support multi-shift operation and provides peak performance with the advantage of opportunity charge.
Remote monitoring, communicating and controlling ROYPOW batteries through CAN.

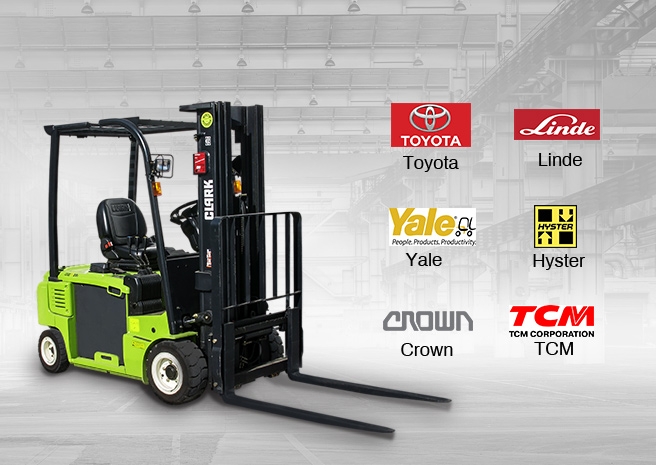

Widely use in various forklift brands:

Our 48V Lithium forklift batteries can perform well in class 1 forklifts and are suitable for medium-balanced forklifts. Otherwise, our 48V batteries are highly compatible and can be generally applied in these famous forklift brands: Toyota, Yale, Hyster, Crown, TCM, Linde, Doosan, etc.

Widely use in various forklift brands:

BMS

BMS software ensures the battery to provide peak performance in operation, and delivers longer run times between charging, which can maximize the total battery lifespan. The owner can know the current situations of the battery via fault display and fault alarm.
Battery pack module

ROYPOW'S battery pack module consists of lithium-iron phosphate cells. Lithium-iron phosphate encompasses multiple chemistries, which results in variations of energy and power density, lifespan, cost and safety.

TECH & SPECS

Nominal Voltage / Discharge Voltage Range	48V (51.2V)	Nominal Capacity	210 Ah
Stored Energy	10.75 kWh	Dimension(L×W×H) For Reference	37.4×14.8×21.7 inch (950×375×550 mm)
Weight lbs.(kg) No Counterweight	440 lbs. (200 kg)	life Cycle	>3,500 times
Continuous Discharge	210 A	Maximum Discharge	420 A (30s)
Charge	-4°F~131°F ( -20°C ~ 55°C)	Discharge	-4°F~131°F ( -20°C ~ 55°C)
Storage (1 month)	-4°F~113°F ( -20°C~45°C)	Storage (1 year)	32°F~95°F ( 0°C~35°C)
Casing Material	Steel	IP Rating	IP65

Green and endure energy supply:

You won’t run up your battery even in the end of one shift, because the lithium-ion battery can be quickly recharged and stores about three times energy than a conventional battery.

Our batteries can work down to -4°F ( -20°C). With their self-heating function (optional), they can heat from -4°F to 41°F in an hour.

Support multi-shift operation and provides peak performance with the advantage of opportunity charge.

Remote monitoring, communicating and controlling RoyPow batteries through CAN.

BENEFITS

Higher sustained power,
with no voltage drop-off.

Safe – No acid spills or
combustible gas emissions.

Over 3500 cycles at
80% depth of discharge.

5 years warranty bring
you peace of mind.

Save bills since rechargeable
charging improves efficiency and
reduce the heating damage costs.

No battery swapping required
for multi-shift applications.

No maintenance to do.

Remote diagnose and
upgrade software.

Widely use in various forklift brands:

As an ideal energy for forklifts, there are a variety of RoyPow
advanced LiFePO4 batteries for you to choose from. Our 48V
Lithium forklift batteries can perform well in class 1 forklift and is
suitable for medium balanced forklifts. Otherwise, our 48V
batteries are high compatibility and can be generally applied in
these famous forklift brands: Toyato, Yale, Hyster, Crown, TCM,
Linde, Doosan, etc.

All batteries are certified in

BMS

BMS software ensures the battery to provide peak performance in operation, and delivers longer run times between charging, which can maximize the total battery lifespan. The owner can know the current situations of the battery via fault display and fault alarm.

Battery pack module

RoyPow’s battery pack module consists of lithium-iron phosphate cells. Lithium-iron phosphate encompasses multiple chemistries, which results in variations of energy and power density, lifespan, cost and safety.

TECH & SPECS

Nominal Voltage Discharge Voltage Range	51.2V / 40V~57.6V	Nominal Capacity	210Ah
Stored Energy	10.75 kWh	Continuous Charge	50A~100A
Weight	F48210A: 440 lbs. (200 kg) F48210B: 462 lbs. (210 kg)	Dimension (L×W×H)	F48210A: 37.4×14.8×21.7 inch (950×375×550 mm) F48210B: 37.4×14.8×21.7 inch (950×375×550 mm)
Continuous Discharge	210A	Maximum Discharge	420 A (5s)
Charge	-4°F~131°F (-20°C ~ 55°C)	Discharge	-4°F~131°F ( -20°C ~ 55°C)
Storage (1 month)	-4°F~113°F (-20°C~45°C)	Storage (1 year)	32°F~95°F ( 0°C ~ 35°C)
Casing Material	Steel	IP Rating	IP65
